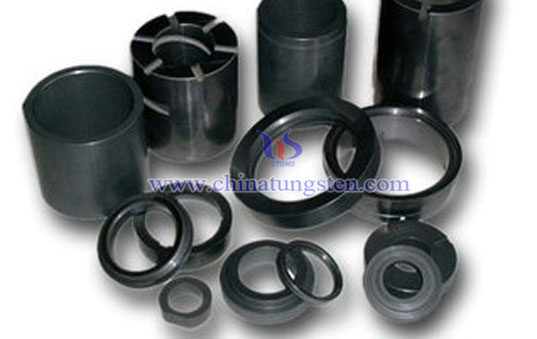

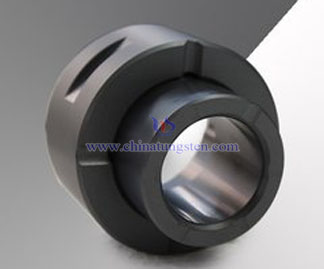

Silicon Carbide Seals

Silicon carbide is the ideal sealing material. It has good corrosion resistance, higher mechanical intensity, excellent resisting wear ability and high temperature, good self-lubricity and making-group, low friction factor, good heat-conduction and so on. Therefore, silicon carbide seals also possess the property of excellent resistant-corrosion, high mechanical strength, high thermal conductivity and good self-lubrication. Silicon carbide seals are widely used in many different industries, including spacecraft, machinery, metallurgy, printing and dyeing, foodstuff, pharmaceutical, auto industry etc.


silicon carbide seals-3

Why make from silicon carbide?
Silicon carbide is a more expensive seals material with the carbon, but it is often used in more demanding applications. For example, blistering is a critical concern with carbon bearing materials. Strangely, the reason why blistering sometimes occurs is not known for certain. The most popular explanation is that a certain amount of material becomes absorbed in the carbon substrate and expands because of frictional heat, thus creating a crater in the seals face. Blistering is most often found in applications involving heavy oils. In some cases, the use of silicon carbide as a mating surface will eliminate a blistering problem.


Silicon Carbide (SiC) physical property

Technical parameter

Unit

RBSiC

SSiC

Sic+C

Ssic+C

Qssic+C

Content of Sic

%

≥90

≥98

≥85

≥92

≥90

Free Si

%

≤10

≤1

≤12

/

/

Elastic Modulus

GPa

≥400

≥410

≥350

≥360

≥180

Temperature

°C

1300

1400

1300

1400

1400

Hardness

HS

110

115

≥105

≥110

≥100

Porosity Rate

%

<0.3

<0.2

<0.5

<0.5

<5

Density

g/cm3

3.00~3.05

>3.10

2.69-2.90

2.70-3.0

2.65

Compressive Strength

MPa

>2200

>2500

>1400

>1600

>800

Fractural Strength

MPa

>350

>380

>150

>160

>100

Coefficient of Heat Expansion

10-6/°C

4

4.2

3.50

3.00

2.50

If you have any other question or inquiry of silicon carbide seals, please feel free to contact us through the following methods:
Emails:sales@chinatungsten.com   sales@xiamentungsten.com
Tel.: +86 592 5129696/86 592 5129595
Fax: +86 592 5129797
